Adagio Series On-wall Speakers

SMWx20-web1
SMWx20-web1SMWx20-web2 (420)SMWx20-web3 (620)SMWx20-web4 (820)SMWx20-web5SMWx20-web7SMWx20-web6

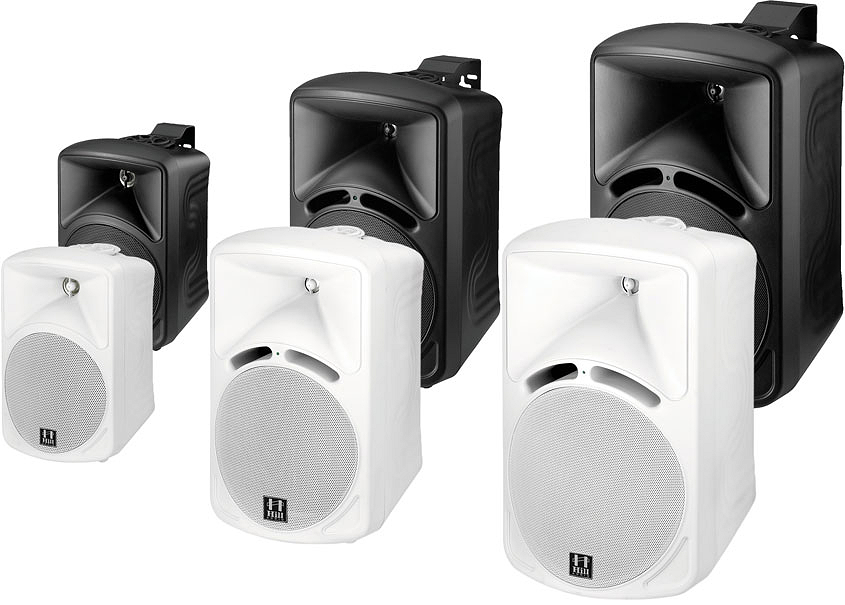

The Adagio series is the perfect loudspeaker choice for background music applications. Whether at low volumes like in retail environments or at more elevated sound levels as in hospitality use, there is a choice for every purpose in this range. Being tuned for the high dynamics and extended frequency response of pop music, this line of speakers not only looks good, but first and foremost provides a vivid and pleasant listening experience. The woofer is protected by a sturdy grille, and electrical connections are made via binding posts in a recessed compartment on the speaker’s back side. The same compartment also houses the transformer tap settings on versions with built-in line transformer, which is an option on the 4’’ and 6’’ size variants (”T” suffix). The two available colors (black, white) allow for an easy integration into any architectural environment. A truly versatile speaker range at an affordable price.

Available models:

SMW-420x:
4” Woofer | 2-way passive | 8Ω | Black (x=BL) or white (x=WT)

SMW-420xT:
4” Woofer | 2-way passive | Built-in line transformer (HiZ, 8Ω) | Black (x=BL) or white (x=WT)

SMW-620x:
6” Woofer | 2-way passive | 8Ω | Black (x=BL) or white (x=WT)

SMW-620xT:
6” Woofer | 2-way passive | Built-in line transformer (HiZ, 8Ω) | Black (x=BL) or white (x=WT)

SMW-820x:
8” Woofer | 2-way passive | 8Ω | Black (x=BL) or white (x=WT)

  • 2-way passive speaker system
  • Available in Low-Impedance configuration or universal impedance configuration (only SMW-420/620) with built-in line transformer (version suffix “T”)
  • Acoustically optimized cabinet shape with integrated high-frequency waveguide
  • Elegantly shaped, impact-resistant ABS cabinet
  • Driver-adapted high-grade passive crossover
  • Metal woofer grille

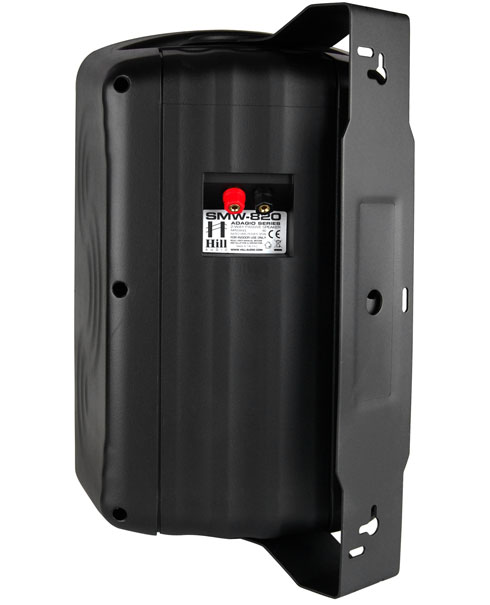

  • Recessed connection compartment with binding posts for input cables
  • Metal mounting bracket with adjustable angle included
  • Available in black or white
  • Supplied in pairs
  • CE/ROHS compliant

SMW-420x/420xT (x=BL for black or x=WT for white)

  • 4’’ low frequency transducer
  • 75” Mylar high frequency transducer with waveformer
  • Closed box design
  • Frequency Response 70Hz-20kHz ±3dB
  • Sensitivity 88dB (1W/1m)
  • SPL 100 dB
  • Rated Power 25W RMS („T“ version with 2/4/8/16W@HiZ power taps)
  • 2xM6 mounting points
  • 2x Screw terminal
  • Dimensions W*H*D 243*151*150mm
  • Weight 1.65kg („T“ version 1.95kg)
  • Bracket included
  • Cabinet color: black or white
  • Available without and with internal line transformer (suffix “T”)

SMW-620x/620xT (x=BL for black or x=WT for white)

  • 6’’ low frequency transducer
  • 75” Mylar high frequency transducer with waveformer
  • Vented box design
  • Frequency Response 55Hz-20kHz ±3dB
  • Sensitivity 89dB (1W/1m)
  • SPL 106 dB
  • Rated Power 50W RMS („T“ version with 4/8/16/30W@HiZ power taps)
  • 2xM6 mounting points
  • 2x Screw terminal
  • Dimensions W*H*D 348*208*203mm
  • Weight 4.1kg („T“ version 4.82kg)
  • Bracket included
  • Cabinet color: black or white
  • Available without and with internal line transformer (suffix “T”)

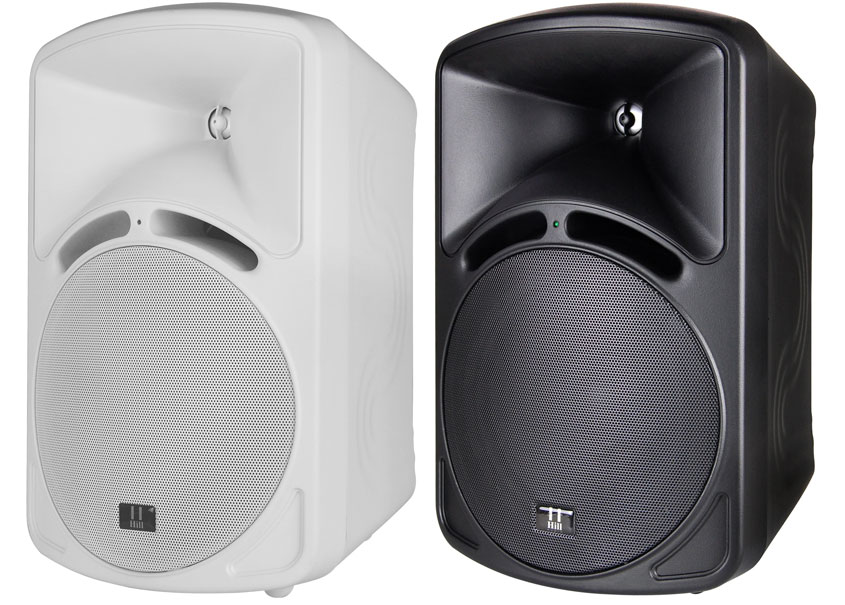

SMW-820x (x=BL for black or x=WT for white)

  • 8’’ low frequency transducer
  • 1” Dome high frequency transducer with waveformer
  • Vented box design
  • Frequency Response 45Hz-20kHz ±3dB
  • Sensitivity 90dB (1W/1m)
  • SPL 111 dB
  • Rated Power 85W RMS
  • 2xM6 mounting points
  • 2x Screw terminal
  • Dimensions W*H*D 420*253*249mm
  • Weight 7.3kg
  • Bracket included
  • Cabinet color: black or white

EMC/Safety Compliance:

This product is passive and does not require compliance verification with the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual
Datasheet
Picture archive

Hill SMW420B (BL-LoZ) (A) [UV-NPC] PC
Order Code: 1302901
GTIN13: 5060502920041
Size single carton: 378*260*175mm (0.0172 cbm)
Weight single carton: 4.60 kg
Units (pairs) per master carton: 6
Size master carton: 556*403*558mm (0.125 cbm)
Weight master carton: 28.5 kg

Hill SMW420W (WT-LoZ) (A) [UV-NPC] PC
Order Code: 1302921
GTIN13: 5060502920065
Size single carton: 378*260*175mm (0.0172 cbm)
Weight single carton: 4.60 kg
Units (pairs) per master carton: 6
Size master carton: 556*403*558mm (0.125 cbm)
Weight master carton: 28.5 kg

Hill SMW420BT (BL-HiZ) (A) [UV-NPC] PC
Order Code: 1302911
GTIN13: 5060502920058
Size single carton: 378*260*175mm (0.0172 cbm)
Weight single carton: 5.20 kg
Units (pairs) per master carton: 6
Size master carton: 556*403*558mm (0.125 cbm)
Weight master carton: 32.1 kg

Hill SMW420WT (WT-HiZ) (A) [UV-NPC] PC
Order Code: 1302931
GTIN13: 5060502920072
Size single carton: 378*260*175mm (0.0172 cbm)
Weight single carton: 5.20 kg
Units (pairs) per master carton: 6
Size master carton: 556*403*558mm (0.125 cbm)
Weight master carton: 32.1 kg

Hill SMW620B (BL-LoZ) (A) [UV-NPC] PC
Order Code: 1303001
GTIN13: 5060502920089
Size single carton: 512*370*237mm (0.0449 cbm)
Weight single carton: 9.20 kg
Units (pairs) per master carton: 2
Size master carton: 538*502*405mm (0.109 cbm)
Weight master carton: 19.5 kg

Hill SMW620W (WT-LoZ) (A) [UV-NPC] PC
Order Code: 1303021
GTIN13: 5060502920102
Size single carton: 512*370*237mm (0.0449 cbm)
Weight single carton: 9.20 kg
Units (pairs) per master carton: 2
Size master carton: 538*502*405mm (0.109 cbm)
Weight master carton: 19.5 kg
Hill SMW620BT (BL-HiZ) (A) [UV-NPC] PC
Order Code: 1303011
GTIN13: 5060502920096
Size single carton: 512*370*237mm (0.0449 cbm)
Weight single carton: 10.45 kg
Units (pairs) per master carton: 2
Size master carton: 538*502*405mm (0.109 cbm)
Weight master carton: 22.4 kg

Hill SMW620WT (WT-HiZ) (A) [UV-NPC] PC
Order Code: 1303031
GTIN13: 5060502920119
Size single carton: 512*370*237mm (0.0449 cbm)
Weight single carton: 10.45 kg
Units (pairs) per master carton: 2
Size master carton: 538*502*405mm (0.109 cbm)
Weight master carton: 22.4 kg

Hill SMW820B (BL-LoZ) (A) [UV-NPC] PC
Order Code: 1303101
GTIN13: 5060502920126
Size single carton: 608*450*285mm (0.078 cbm)
Weight single carton: 16.50 kg
Units (pairs) per master carton: 1
Size master carton: 633*310*485mm (0.095 cbm)
Weight master carton: 17.9 kg

Hill SMW820W (WT-LoZ) (A) [UV-NPC] PC
Order Code: 1303111
GTIN13: 5060502920133
Size single carton: 608*450*285mm (0.078 cbm)
Weight single carton: 16.50 kg
Units (pairs) per master carton: 1
Size master carton: 633*310*485mm (0.095 cbm)
Weight master carton: 17.9 kg
