DMP-230V2 (B) Media Player

DMP230V2-web1
DMP230V2-web1DMP230V2-web2DMP230V2-web3DMP230V2-web4DMP230V2-web5

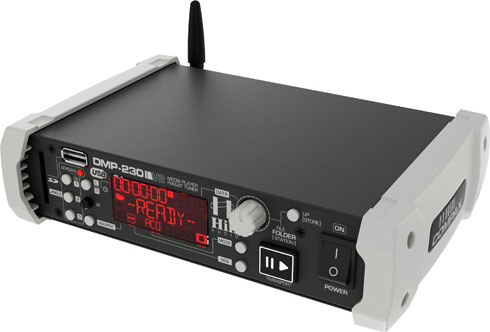

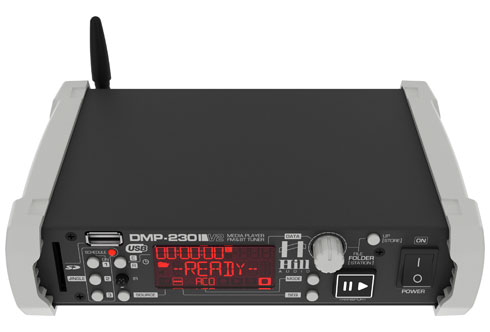

Designed to add MP3 file replay and FM radio reception to any professional audio system, the DMP-230V2 sports intuitive use, excellent audio quality and the added value of an in-built jingle player with scheduling. The latter allows to insert jingles (like advertisements, etc.) either at the touch of a button or in certain time intervals into the running program. A large LCD provides clear status information and read-out of MP3 file names and RDS radio text, and an included IR remote control provides additional convenience in daily use. Packed in a rugged metal case with stylish plastic side cheeks, the DMP-230V2 can be operated stand-alone our mounted into a 19’’ rack by means of the optional rack kit (not included). Also available with additional built-in Bluetooth module as DMP-230V2B.

  • Media player/tuner with file/folder access for USB thumbdrives/SD cards up to 16GB/2000 songs
  • FAT32 file system
  • MP3 file name readout on large LCD display
  • Regular and random play sequence
  • Elapsed/remain time mode
  • FM tuner mode with RDS station display
  • 10 self-programmable radio station presets
  • Jingle player with up to 3 jingles and additional scheduled play mode
  • IR remote for media player transport functions, FM stations and volume control

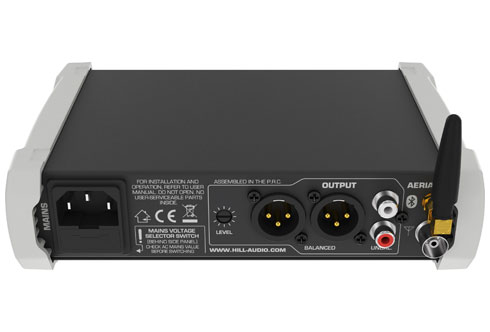

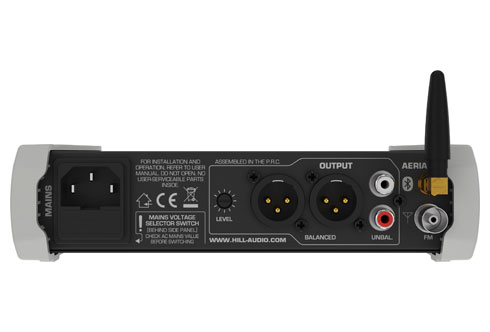

  • Balanced (XLR) and unbalanced (RCA) output
  • Output level setting on rear panel
  • Low-noise linear power supply
  • Full metal case with plastic side cheeks (rack mount kit optional)
  • CE/ROHS compliant
  • Available as DMP-230V2 without Bluetooth module and as DMP-230V2B with Bluetooth module
  • Audio formats (local replay): MP3
  • AC supply 115/230V~ 50Hz-60Hz (10W)
  • Dimension (with plastic side cheeks): W195.0×H50.0×D131.0mm
  • Dimension (without plastic side cheeks): W180.0×H42.0×D114.2mm
  • Weight 0.9 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual
User manual (Predecessor)
Datasheet
Datasheet (Predecessor)
Picture archive

Hill DMP230V1 (A) [115/230V-C14] SC
Order Code: 2003301
GTIN13: 5060502920959
Size single carton: 258x248x88mm (0.0056 cbm)
Units per master carton: 16
Size master carton: 530x380x510mm (0.1027 cbm)
Note: This product cannot be ordered anymore and is succeeded by below V2 versions.

Hill DMP230V2B (A) [115/230V-C14] SC
Order code: 2003311
GTIN13: 5060502920966
Size single carton: 260x255x90mm (0.006 cbm)
Weight single carton: 1.16 kg
Units per master carton: 4
Size master carton: 390x285x280mm (0.031 cbm)
Weight master carton: 5.34 kg

V1 up to 04-2017
V2 from 05-2017
