Gravo SWA-1510 Active 15’’ Sub

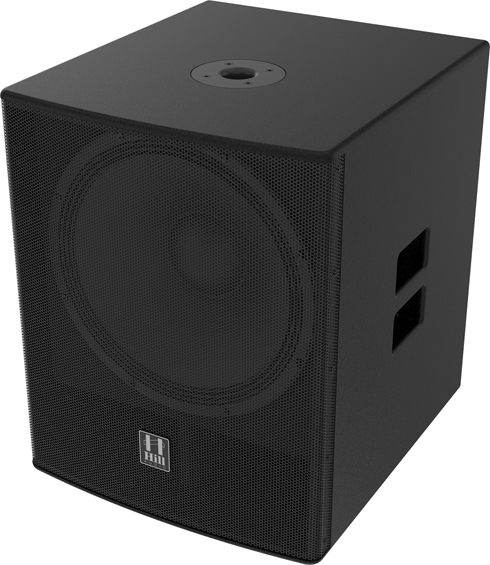

SWA1510-W01-Front_UpRight_RGB_72dpi_W490px
SWA1510-W01-Front_UpRight_RGB_72dpi_W490pxSWA1510-W02-Front_Straight_RGB_72dpi_W490pxSWA1510-W03-Front_UpLeft_RGB_72dpi_W490pxSWA1510-W06-Rear_UpLeft_RGB_72dpi_W490pxSWA1510-W05-Rear_Straight_RGB_72dpi_W490pxSWA1510-W04-Left_Straight_RGB_72dpi_W490px

The Gravo SWA-1510 active subwoofer complements the Andante series of moulded speakers to perfection, adding the low bass punch that can only be obtained from a powerful driver in a solid wooden enclosure. Being a direct-radiating, vented design, it’s perfect for short-throw applications. A 15’’ driver with 3’’ voice coil and an optimized magnetic motor system provides great power efficiency, and adding the 770W class D amplifier module, it delivers an impressive low-end performance with high maximum SPL. Connection to sources and integration into systems is simple, with a stereo input provided, which is carried forward to a link output as well as a satellite output, the later subject to high-pass filtering (120/150Hz switchable). In this way, one or two satellite speakers can be connected, running the system in mono or stereo; further systems can easily be daisy-chained. The total system volume is adjustable, and the sub volume can be shifted against the main volume from -12 to +6dB. Made from 15mm birch plywood, carefully assembled and finished with extremely scratch-resistant black paint, this subwoofer is ready for the rigours of the road as well as the aesthetic requirements of installations.

  • 15’’ long-excursion driver, 3’’ voice coil, diecast basket, 700W power handling
  • Max. SPL 132dB Peak
  • 770 watts Class-D amplifier
  • Fan-less convection cooling for silent operation
  • Master volume control
  • Subwoofer vs. master level control -12/+6dB
  • Built-in 120/150Hz switchable low pass filter for internal woofer
  • Built-in 120/150Hz switchable high pass filter for external satellites
  • 0°/180° phase switch for subwoofer
  • Power/Limit/Protection indicators
  • Dual (L+R) XLR / ¼” TRS combo inputs
  • Dual (L+R) XLR link outputs
  • Dual (L+R) XLR satellite outputs
  • Solid 15mm birch plywood construction
  • Structured scratch-resistant paint, black

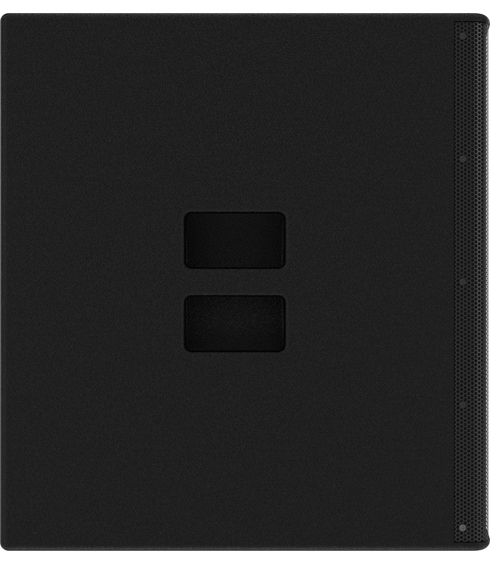

  • Integrated side handles, one per side
  • All-metal speaker pole mount adaptor
  • Recessed rear connection panel

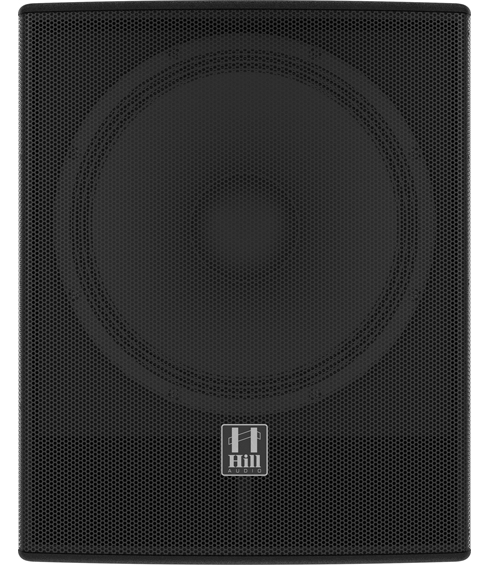

  • Rugged steel front grille
  • CE/ROHS compliant
  • Frequency response (-6 dB): 39Hz-150Hz
  • Additional switchable LPF: 120Hz
  • LF Driver: 15’’, 3’’ VC, 700W
  • Max SPL: RMS/Program/Peak 126/129/132dB
  • Amplifier Topology: Class D
  • Amplifier power EIA/RMS: 770/500W
  • AC IN: 115/230V~ 50Hz-60Hz (600W)
  • Dimensions: W450.0×D500.0×H550.0 mm
  • Material: 15mm birch plywood
  • Surface: Scratch-resistant paint, black
  • Weight: 28.0 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

 Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual
Datasheet
Picture archive

Gravo SWA-1510

DetailsGTIN-13MSRP*
Hill SWA1510 (A) [UV-C14] SC
Order Code: 1303301
5060502921291$ 465.00
Single cartons per master carton (PU): 1
AC Cord: C13
HS Code: 85182900
Single carton - Size: 530.000/580.000/630.000mm (0.193662cbm), Weight: 28.00kg
Master carton - Size: 530.000/580.000/630.000mm (0.193662cbm), Weight: 28.00kg
