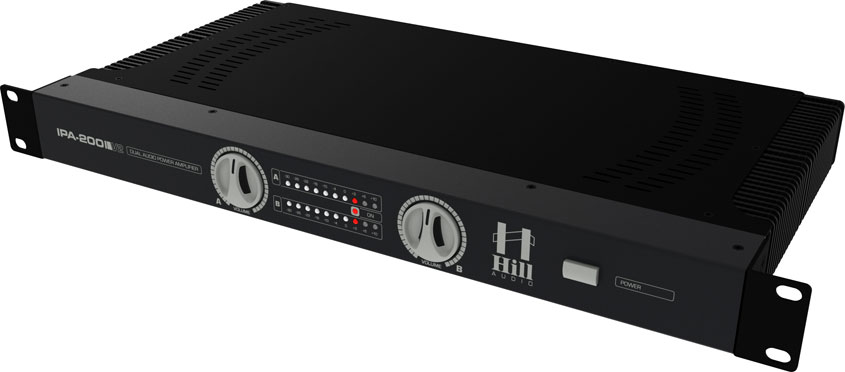

IPA-200V2 Power Amplifier

IPA200_web1
IPA200_web1IPA200_web2IPA200_web3IPA200_web4IPA200_web5IPA200_web6

The IPA-200V2 is an ultra-versatile power amplifier for installation purposes. It can serve both as a stereo and as a dual-mono amplifier, and the inputs can even be configured to sum two stereo signals into two mono signals in case that a source is stereo but a mono zone needs to be fed. Input high-pass filters and 2-band EQs are available separately for each channel to cater for driving speakers with limited bass response like ceiling speakers. Rear-side maximum volume controls avoid that certain volumes can be exceeded, and the front-panel volumes controls can be completely disabled if needed. The IPA-200V2 is the most versatile low-impedance installation amplifier available.

  • Dual channel installation power amplifier
  • Two independent mono amplifier blocks with 80W@4Ohms / 50W@8Ohms RMS power each
  • Phoenix-compatible speaker outputs
  • Stereo and parallel mono operation modes of the two mono blocks
  • Mono-summing option for two incoming stereo signals allowing to process two stereo signals into two mono signals and send them to one amplifier block each for mono zoning
  • 2-Band-EQ, 40Hz and 80Hz HighPass filters for each amplifier block input
  • Balanced (XLR and Phoenix) and unbalanced (RCA) inputs
  • ¼’’ TRS line-level outputs in parallel to inputs

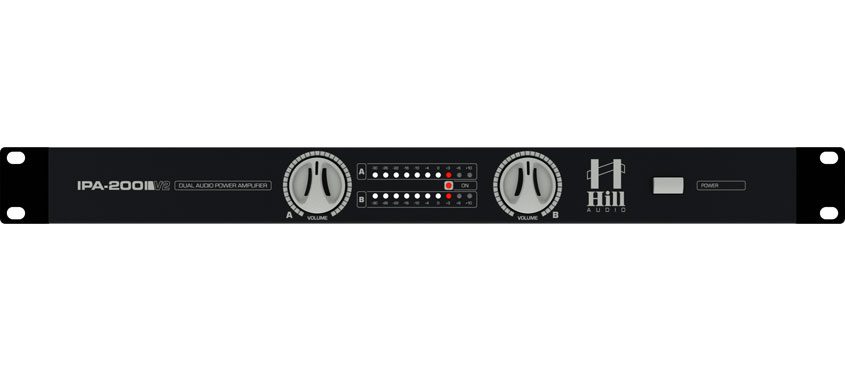

  • Front-side volume control with 41-click precision potentiometers
  • Additional rear-side volume control for each block to limit the maximum volume
  • Front-side volume controls can be disabled by rear-side switch
  • 2x10LED front-side level meter
  • Noiseless convection cooling
  • Over-temperature protection
  • Linear power supply with toroidal transformer
  • Full metal case with detachable rack ears
  • Internal AC mains voltage setting 115/230V
  • CE/ROHS compliant
  • Power (RMS) stereo: 2×50/80 @ 8/4 Ohms
  • Signal/Noise >82dBu (unweighted 22Hz-22KHz)
  • Crosstalk Damping >65dB
  • THD < 0.05%
  • Frequency response: 20Hz-20kHz
  • AC supply 115/230V~ 50Hz-60Hz (max. 200W)
  • Dimension 483.0×44.5×228.0 mm WxHxD
  • Weight 5.6 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

 Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual (Predecessor)
Datasheet
Datasheet (Predecessor)
Picture archive

Hill IPA200V2 (A) [115/230V-C14] SC
Order code: 2006171
GTIN13: 5060502920324
Size single carton: 535x350x90mm (0.0169 cbm)
Weight single carton: 6.4 kg
Units per master carton: 4
Size master carton: 560x375x390mm (0.082 cbm)
Weight master carton: 26.7 kg

V1: until 04-2017
V2: from 05-2017
