LMD-1202FX 4+4-in-2 mixer

LMD1202FX-web1
LMD1202FX-web1LMD1202FX-web2LMD1202FX-web3LMD1202FX-web4LMD1202FX-web5

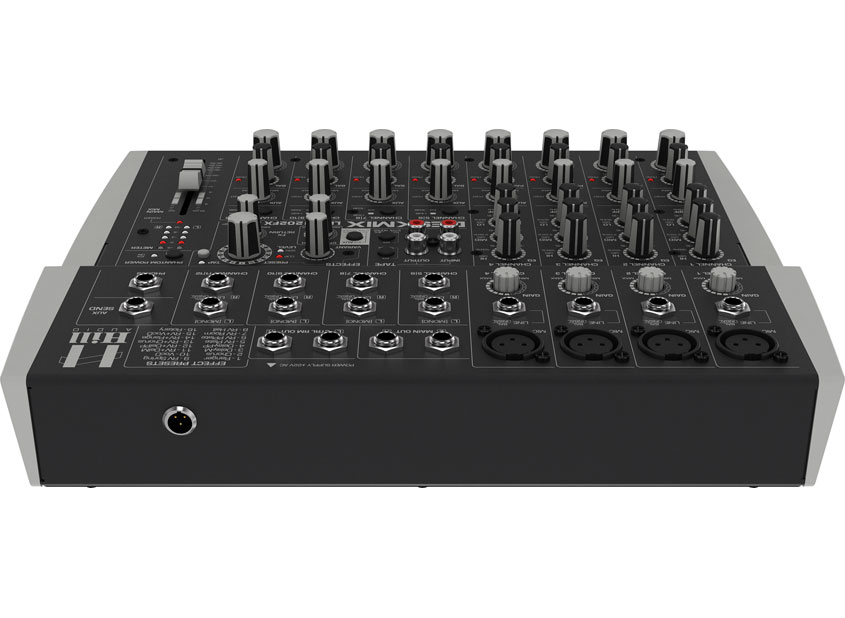

The Hill Audio LMD-1202FX desktop live mixer comprises everything a small band without dedicated monitor system would need: 4 microphone channels with quality preamps, 3-band EQ, effects bus, pan and volume control; 4 stereo input channels with effects bus, balance and volume control, and a versatile Record/Playback port plus a control room output for prelistening/monitoring purposes. The LMD-1202FX also sports a sophisticated 3-core DSP effects processor, offering 16 highly useful algorithms which can be altered in their core parameter as well as aligned to the music tempo by a tap function. Being fed by an external symmetrical AC power supply which is connected to the mixer via a locking connector, this mixer delivers outstanding audio performance for bands on a budget and is ready for the rigors of the road with its sturdy metal case.

  • 4 mono microphone inputs with wide-range gain control (mic/line signal sensitivities)
  • Switchable +48V microphone phantom power
  • 3-band EQ, 75Hz highpass-filter, post-volume Aux (EFX) bus, pan control, Peak LED and volume control for all mono inputs
  • 4 stereo Line inputs with +4/-10dB sensitivity switch,post-volume Aux (EFX) bus, balance control, Peak LED and volume control
  • Stereo tape record/playback port with flexible routing options (to main mix, to control room)
  • Control Room/headphones output with switch to include/exclude the Aux (EFX) bus signal
  • Main Out with 60mm fader & 2×5 LED meter
  • TriCore DSP effects with stereo ouput, 24-Bit converters and 16 algorithms: Flanger | Chorus | Delays: Mono / PingPong | Reverbs: Plate / PrePlate / Room / Hall / Spring | VocalDetune | Reverb+MonoDelay | Reverb+PingPong-Delay | Reverb+Chorus | Reverb+Flanger | Reverb+VocDoubler | Rotary
  • All DSP effects with 16 parameter variations
  • Tap-tempo for effects where applicable
  • Signal/Peak indicator and effects return control for effects processor
  • External power supply for lowest hum and high dynamics, connected via locking connector
  • Full metal case
  • CE/ROHS compliant
  • Frequency response (Mic In @ -20 dB) | Mic In to Main Out: 10Hz-22kHz +0-1dB
  • THD (Mic In @ -20 dB): 0.007%
  • SNR | Mic In to Main Out: >85dB
  • Preamp Noise (EIN 150Ω source): -114dB
  • Residual Output Noise | All level controls @ minimum: <-95dB
  • CMRR (Maximum Gain): >50dB @ 1kHz
  • Crosstalk (adjacent channels): -70dB
  • AC IN (EU version): AC220-250V~ 50Hz (12.5W)
  • Dimensions: W304xH255xD60mm
  • Weight without PSU (PSU=0.55kg): 2.1kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual (Predecessor)
Datasheet
Picture archive

Hill LMD1202FXV1 (A) [230V-A02] SC
Order Code: 2008201
GTIN13: 5060502920867
Size single carton: 435x120x310mm (0.0162 cbm)
Weight single carton: 3.40 kg
Units per master carton: 4
Size master carton: 505x460x340mm (0.079 cbm)
Weight master carton: 14.5 kg

available
