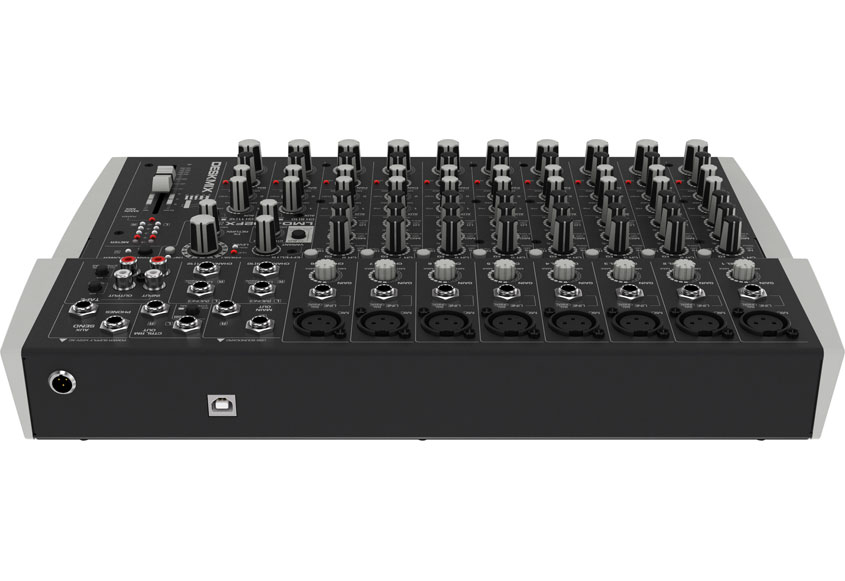

LMD-1402FX-USB 8+2-in-2 mixer

LMD1402FX-USB-web1
LMD1402FX-USB-web1LMD1402FX-USB-web2LMD1402FX-USB-web3LMD1402FX-USB-web4LMD1402FX-USB-web5

The Hill Audio LMD-1402FX-U desktop live mixer is the next step up for small bands who want dedicated monitoring. 8 microphone channels with quality preamps, 3-band EQ, monitor bus, effects bus, pan and volume control; 2 stereo input channels with effects bus, balance and volume control, and a versatile Record/Playback port plus a control room output for prelistening/monitoring purposes. The LMD-1402FX-U also sports a sophisticated 3-core DSP effects processor, offering 16 highly useful algorithms which can be altered in their core parameter as well as aligned to the music tempo by a tap function. Additional convenience for digital recording and replay is added by the internal stereo replay/record USB soundcard. Being fed by an external symmetrical power supply which is connected to the mixer via a locking connector, this mixer delivers outstanding audio performance for bands on a budget.

  • 8 mono microphone inputs with wide-range gain control covering microphone and line signal sensitivities
  • Switchable +48V phantom power for microphone inputs
  • 3-band EQ, 75Hz highpass-filter, pre-volume Monitor bus, post-volume Aux (EFX) bus, pan control, Peak LED and volume control for all mono inputs
  • 2 stereo Line inputs with +4/-10dB sensitivity switch, pre-volume Monitor bus, post-volume Aux (EFX) bus, balance control, Peak LED and volume control
  • Stereo tape record/playback port with flexible routing options (to main mix, to control room)
  • Control Room/headphones output with selectable inclusion/exclusion of the Aux (EFX) bus signal
  • Main output with 60mm fader and 2×5 LED level meter
  • TriCore DSP effects with stereo ouput, 24-Bit converters and 16 algorithms: Flanger | Chorus | MonoDelay | PingPong Delay | Plate Reverb | PrePlate Reverb | Room Reverb | Hall Reverb | Spring Reverb | VocalDetune | Reverb+MonoDelay | Reverb+PingPong-Delay | Reverb+Chorus | Reverb+Flanger | Reverb+VocDoubler | Rotary
  • All DSP effects available in 16 parameter variations
  • Effect tap-tempo alignment for effects where applicable
  • Signal/Peak indicator and effects return control for effects processor
  • Internal USB stereo replay/record soundcard
  • External power supply for lowest hum and high dynamics, connected via locking connector
  • Full metal case
  • CE/ROHS compliant
  • Frequency response (Mic In @ -20 dB) | Mic In to Main Out: 10Hz-22kHz +0-1dB
  • THD (Mic In @ -20 dB): 0.007%
  • SNR | Mic In to Main Out: >85dB
  • Preamp Noise (EIN 150Ω source): -114dB
  • Residual Output Noise | All level controls @ minimum: <-95dB
  • CMRR (Maximum Gain): >50dB @ 1kHz
  • Crosstalk (adjacent channels): -70dB
  • AC IN (EU version): AC220-250V~ 50Hz (12.5W)
  • Dimensions: W372xH255xD60mm
  • Weight without PSU (PSU=0.55kg): 2.6kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

 Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual (Predecessor)
Datasheet
Picture archive

Hill LMD1402FXUV1 (A) [230V-A02] SC
Order Code: 2009501
GTIN13: 5060502920881
Size single carton: 525x120x310mm (0.0193 cbm)
Weight single carton: 4.08 kg
Units per master carton: 4
Size master carton: 550x505x340mm (0.094 cbm)
Weight master carton: 17.35 kg

available
