LMR-1204FX-C-USB 12+4-in-2/2 Mixer

LMR1204FX-C-USB-Web1
LMR1204FX-C-USB-Web1LMR1204FX-C-USB-Web2LMR1204FX-C-USB-Web3LMR1204FX-C-USB-Web4LMR1204FX-C-USB-Web5

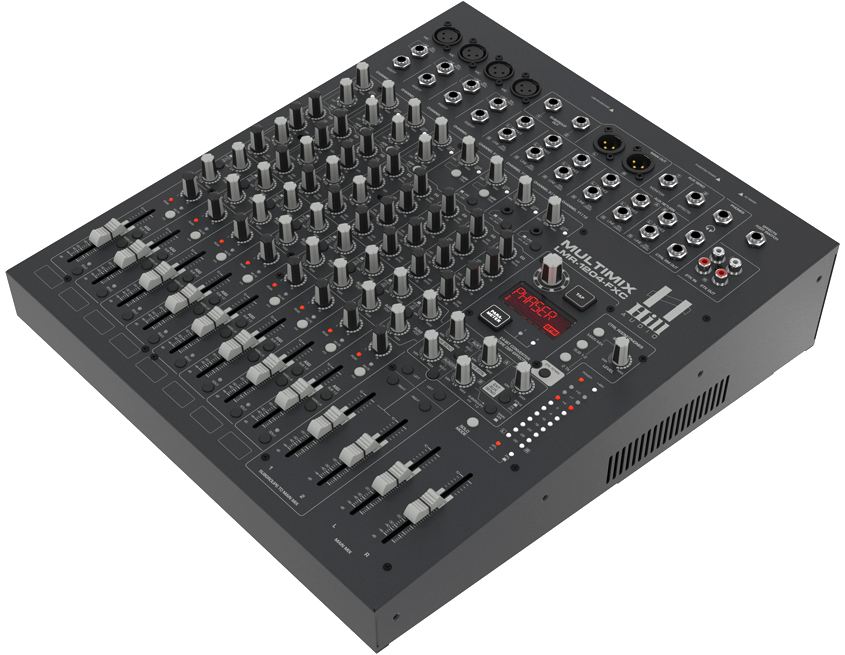

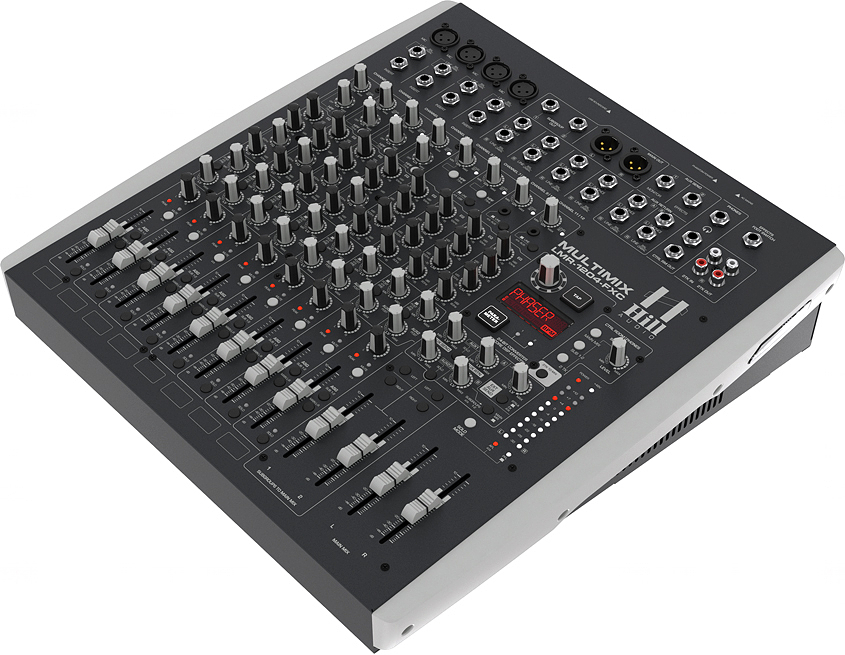

The Hill Audio Multimix LMR-1204FX-C-USB is a 19’’-rackable live mixing desk which marks the entry-level for a subgroup-fitted model. It comprises everything required for a small live event: 4 mono channels with low-noise microphone inputs cater for acoustic sources, where the one-knob compressors make dynamics management easy and the 3-band EQs with semi-parametric mids allow for prefect tonal adjustments. 4 stereo input channels provide connections for a variety of other sources, two of these also fitted with 3.5mm TRS inputs in case the desk needs to be temporarily converted to a DJ console. The subgroups grant a structured approach to the mixdown. 2 AUX busses are provided, one of them routable pre-/post-fader for monitor or effects purposes, and the other routed postfader to the internal effects processor. This effects processor sports a large LCD display for clear readout and allows to edit up to 3 parameters per algorithm for extended effects flexibility. A USB audio interface for basic stereo replay and recording completes this comprehensive mixer concept.

  • 4 mono mic/line inputs with gain control, one-knob compressor, 75Hz highpass filter, 3-band semiparametric EQ, 2 AUX busses, pan control and peak LED
  • 4 stereo Line inputs with gain control, 4-band shelving EQ, balance control and peak LED
  • 5mm Mini TRS stereo inputs in two stereo channels
  • 60mm faders for level control in all channels
  • All mic channels with insert jack
  • Channels assignable to Master (LR) or the subgroups
  • 2 Subgroups with external outputs, assignable to Master L or R, 60mm fader per subgroup
  • Switchable +48V phantom power for microphone inputs
  • One AUX bus fixed post-fader (assigned to internal effects), one AUX bus switchable pre/post
  • Post-fader AUX return re-routable to Monitor AUX send
  • TriCore DSP 24-Bit stereo effects processor with LCD display, external output and footswitch control. 15 algorithms in 6 groups, editable in up to 3 parameters per algorithm. Tap tempo function.
  • Stereo tape record/playback port with flexible routing
  • USB stereo soundcard for replay and recording
  • Control Room/headphones output with selectable source
  • Main output with 60mm fader and 2×10 LED level meter
  • SOLO function for channels and AUX send, PFL/AFL

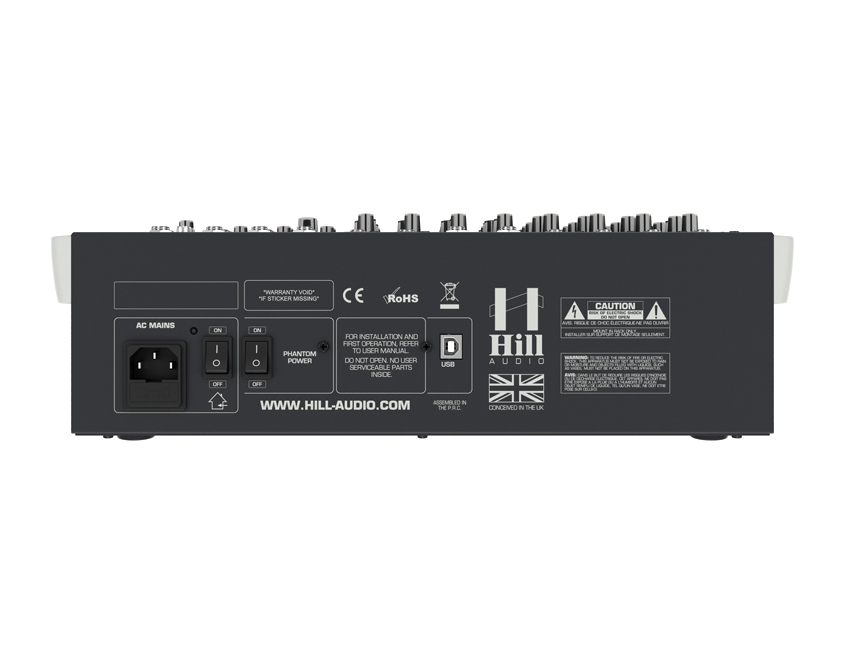

  • Internal switch mode power supply

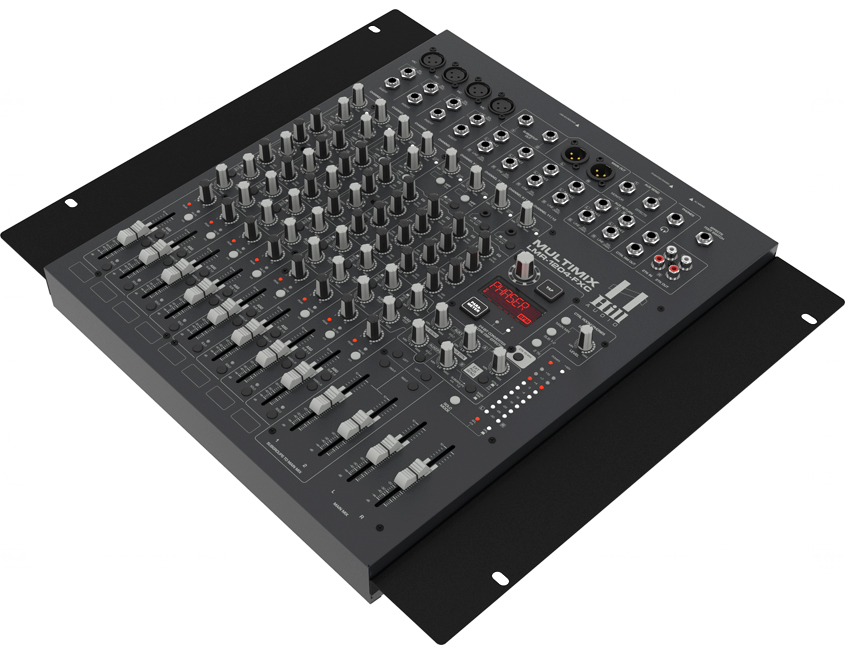

  • Full metal case with detachable plastic side panels and mountable metal rack ears (included)
  • CE/ROHS compliant
  • Frequency response (MIC IN @ -20 dB) | Mic In to Main Out (Trim at 0 dB): 10Hz – 22kHz +0 -1dB
  • THD (MIC IN @ -20 dB) | Mic In-Main Out, 20Hz-20kHz: (Trim at 0 dB, Main output at 0 dB): 0.007%
  • Signal-to-noise ratio | Mic In to Main Out (Trim at 0 dB): >85dB
  • Preamp Noise (EIN) | 20 Hz to 20 kHz, (150Ω source): -114 dB
  • Residual Output Noise | All level controls @ minimum: <-95dB
  • Common Mode Rejection Ratio (CMRR) | Maximum Gain: >50dB @ 1kHz
  • Crosstalk | Adjacent channels/ Same channel (stereo separation): -70dB/-40dB
  • AC supply 100-250V~ 50Hz-60Hz (30W)
  • Dimension 355.0×412.0×103.0 mm WxHxD
  • Weight 5.5 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual
Datasheet

Hill LMR1204FXCU (A) [UV-C14] SC
Order Code: 2008801
GTIN13: 5060502920782
Size single carton: 453x170x490mm (0.0377 cbm)
Weight single carton: 7.5 kg
Units per master carton: 2
Size master carton: 470x360x510mm (0.0863 cbm)
Weight master carton: 16.1 kg

01-2017
