RPS-1620 Stereo Mixer

RPS1620-Web1
RPS1620-Web1RPS1620-Web3RPS1620-Web4RPS1620-Web2RPS1620-Web6RPS1620-Web5

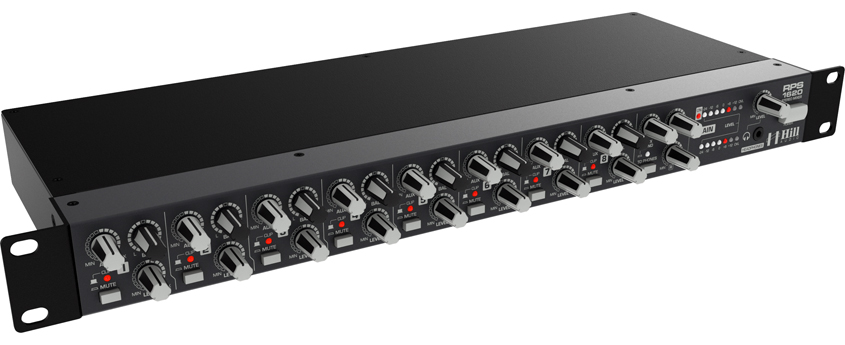

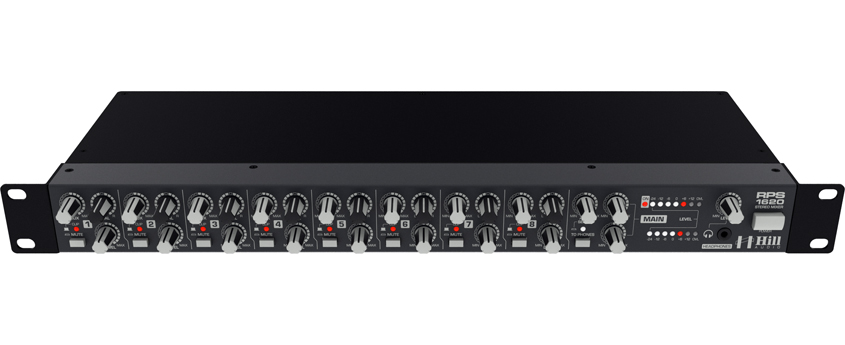

The RPS-1620 is a compact rack-mountable mixer with 8 stereo line input channels, perfectly suited as a submixer for stereo sources such as keyboards, sound modules and electronic drum kits. Due to its fully servo-balanced inputs, it works equally well in installed sound systems where balanced signals from greater distance need to be combined. Last but not least it doubles as a level translator between +4 and -10dB, between which every input can be switched. Each dual-input channel sports individual balance and level controls, plus a double-function mute button which uses the mute indicator LED as a clip indicator when the respective channel is not muted. An AUX/Monitor bus (pre volume) is provided for monitoring or effect processor interfacing, to which each channel can contribute with adjustable level. The master section features separate left/right master volume controls and a master AUX send control, which can also be sent to the built-in headphone monitor section. Given its affordability and the high-headroom of 20dB due to the fully analog design, this mixer is a problem solver with almost unlimited applications.

  • Multi-purpose sub/monitoring/summing-mixer and level translator

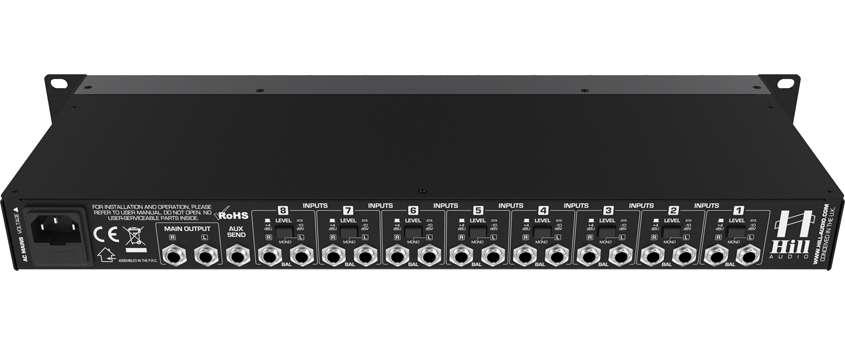

  • 8 balanced stereo line inputs (dual 1/4” TRS)
  • Dedicated balance and level controls plus +4/-10 level selection per channel
  • AUX control (pre-volume) per section with master send control for monitoring or effects
  • Dual-use “mute” button per section with clip indication
  • AUX Send signal assignable to phones output
  • 2×7-segment LED level meters
  • Individual level control for left and right main mix signal
  • Balanced 1/4” TRS main mix outputs
  • 5mm TRS headphones output on the front panel with dedicated level control
  • All switches with LED status indicator
  • Internal wide-voltage swing linear power supply for excellent audio dynamics
  • Full metal case with detachable rack ears
  • AC mains voltage selector switch 115/230V
  • CE/ROHS compliant
  • Signal/Noise >95dBu (unweighted 22Hz-22KHz)
  • Crosstalk Damping >70dB
  • THD <01%
  • Frequency response 20Hz – 20 kHz
  • AC supply 115/230V~ 50Hz-60Hz (15W)
  • Dimension 483.0×44.5×162.0 mm WxHxD
  • Weight 2.46 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual
Datasheet
Picture archive

Hill RPS1620 (A) [115/230V-C14] SC
Order code: 2013901
GTIN13: 5060502920584
Size single carton: 535x255x90mm (0.0123 cbm)
Weight single carton: 2.95 kg
Units per master carton: 4
Size master carton: 560x285x390mm (0.063 cbm)
Weight master carton: 12.7 kg

03-2017
