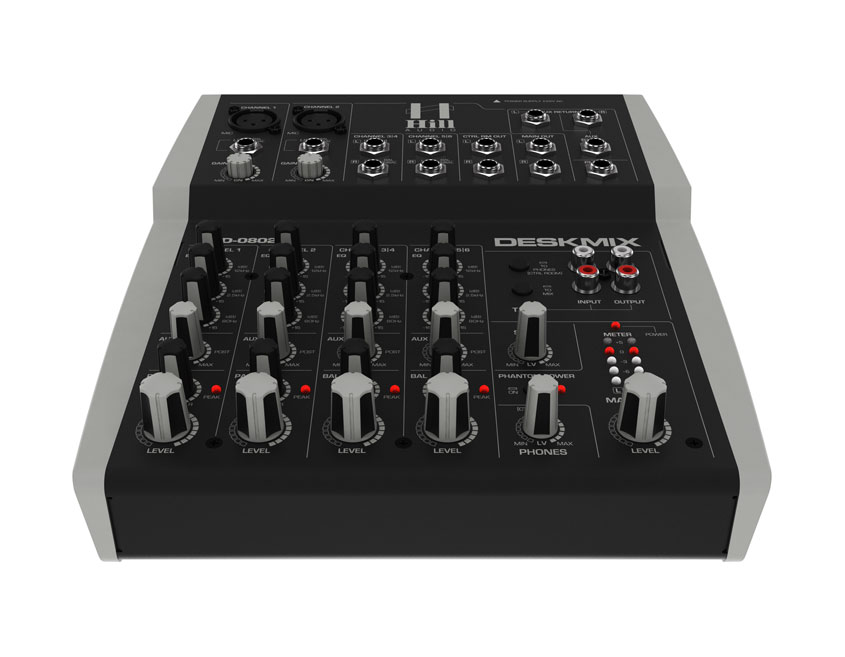

LMD-802 2+2-in-2 Mixer

LMD802-Web1
LMD802-Web1LMD802-Web3LMD802-Web2LMD802-Web4

Entertainers or duos which heavily rely on stereo sources such as keyboards and accompaniment arrangers, will make the Hill Audio LMD-802 their preferred choice. Providing compact and budget-conscious, yet sophisticated pre-amplification and mixing for two microphones/instruments and two stereo sources, the LMD-802 grants great sound from a simple setup in a breeze. Microphones can either be of the dynamic or condenser type, given that a +48V phantom power is built in. The post-volume AUX bus with stereo return facilitates the integration of external effects if required. The external power supply, connected to the mixer via a locking connector, provides for low hum and noise and thus outstanding audio performance. A metal case not only provides for an elegant appearance but also ensures rigidity for the use in mobile applications.

  • 2 mono microphone inputs with wide-range gain control covering microphone and line signal sensitivities
  • Switchable +48V phantom power for microphone inputs
  • 3-band EQ, post-volume Aux (EFX) bus, pan control, Peak LED and volume control for both mono inputs
  • 2 stereo Line inputs with 3-band EQ, post-volume Aux (EFX) bus, balance control, Peak LED and volume control
  • Stereo tape record/playback port with flexible routing options (to main mix, to control room)
  • Control room/headphones output with adjustable volume
  • Main output with volume control
  • 2×5 LED level meter for main output
  • AUX send/return connections for external effects with adjustable send volume and stereo return port
  • External power supply for lowest hum and high dynamics, connected via locking connector
  • Full metal case
  • CE/ROHS compliant
  • Frequency response (Mic In @ -20 dB) | Mic In to Main Out: 10Hz-22kHz +0-1dB
  • THD (Mic In @ -20 dB): 0.013%
  • SNR | Mic In to Main Out: >85dB
  • Preamp Noise (EIN 150Ω source): -118 dB
  • Residual Output Noise | All level controls @ minimum: <-88dB
  • CMRR (Maximum Gain): >50dB @ 1kHz
  • Crosstalk (adjacent channels): -65dB
  • AC IN (EU version): AC220-250V~ 50Hz (12.5W)
  • Dimensions: W212xD255xH60mm
  • Weight without PSU (PSU=0.55kg): 1.45kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual (Predecessor)
Datasheet
Picture archive

Hill LMD802V1 (A) [230V-A02] SC
Order Code: 2008101
GTIN13: 5060502920485
Size single carton: 340x310x120mm (0.0126 cbm)
Weight single carton: 2.65 kg
Units per master carton: 6
Size master carton: 710x390x340mm (0.094 cbm)
Weight master carton: 16.9 kg

available
