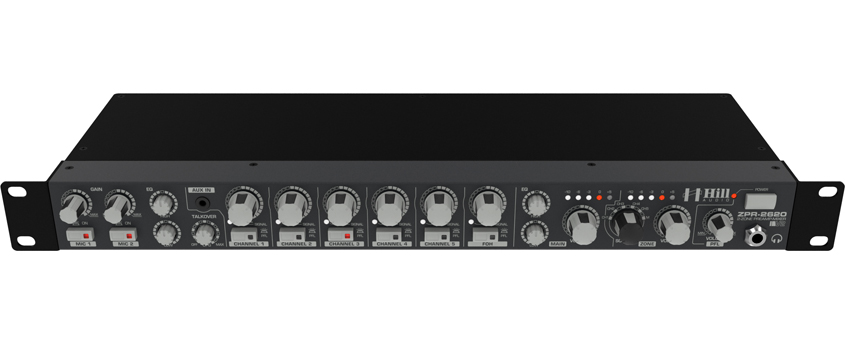

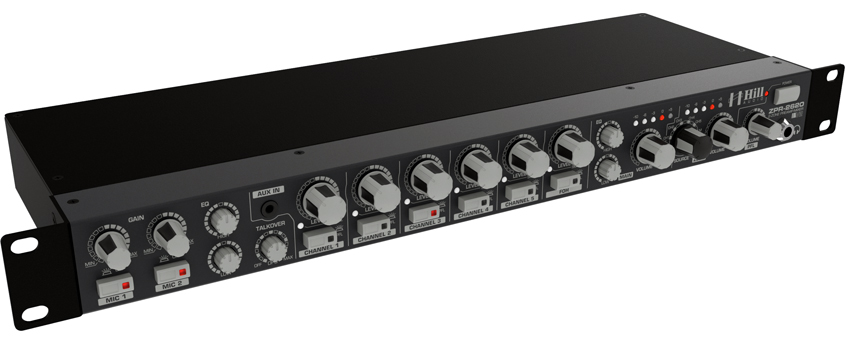

ZPR-2620V2 2-Zone Mixer

ZPR2620-Web1
ZPR2620-Web1ZPR2620-Web3ZPR2620-Web4ZPR2620-Web2ZPR2620-Web6ZPR2620-Web5

The ZPR-2620V2 2-Zone mixer is the only 1U installation mixer featuring Hill Audio’s unique CascadeZone © system, which allows the 2nd output to act either just as a second master or as a second zone, with each output sporting comprehensive rear-panel configuration controls. 2 microphone inputs are complemented by 6 stereo inputs, out of which two can be switched to microphone sensitivity – which makes the ZPR-2620V2 a unique blend between microphone mixer and stereo line mixer. Another Hill Audio innovation is the FOH input, providing a solution to venues with occasional live music events – allowing to feed the FOH system with an external balanced stereo input signal. Comprehensive rear-panel connection and configuration features make the ZPR-2620V2 is the default choice for a hospitality venues’ background music control.

  • 6 stereo inputs with signal-present-LED, rear-panel gain and front-panel level control
  • 2 stereo channels switchable to microphone
  • 1 balanced stereo input (FOH input)
  • Front panel 3.5mm stereo TRS input
  • 2x Mic inputs with rear-side 1/4” TRS connectors
  • 12V phantom power for microphones by internal jumper
  • 2-Band EQ plus “on air” switches for mic inputs
  • Adjustable auto talk-over for automatic music level reduction when microphone is used
  • One stereo output zone and one mono output zone
  • 5 LED level meter for every zone
  • CascadeZone ©: Mono zone source selectable from Input 1-5 or stereo zone signal
  • Rear-side adjustable maximum level control  for each zone
  • Balanced XLR and Phoenix output connectors; stereo zone with additional unbalanced RCA connectors
  • 2-Band master EQ (front-side for stereo zone, rear for mono zone)
  • Emergency input which shuts down master output when emergency signal comes in and plays emergency signal instead
  • Output mute contact to externally mute the output
  • PFL section with volume control and front-side 6.3mm stereo jack
  • Unbalanced record output
  • All switches with LED status indicator
  • Internal wide-voltage swing linear power supply for excellent audio dynamics
  • Full metal case with detachable rack ears
  • AC mains voltage selector switch 115/230V
  • CE/ROHS compliant
  • Signal/Noise >82dBu (unweighted 22Hz-22KHz)
  • Crosstalk Damping >65dB
  • THD <03%
  • Frequency response 20Hz – 20 kHz
  • AC supply 115/230V~ 50Hz-60Hz (20W)
  • Dimension 483.0×44.5×152.0 mm WxHxD
  • Weight 2.4 kg

EMC/Safety Compliance:

  • EU safety: EN 60065:2001 +A1
  • EU EMC: EN55103-1:1997, EN55103-2: 1997
  • US safety: UL60065
  • US EMC: FCC Part 15

This product meets both the EMC Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Environmental Compliance:

  • This product is manufactured in accordance with EG directive 2002/95/EG of the European Union on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
  • This product does not contain more than 0.1% of weight of the SVHCs listed in annex XIV of the REACH regulation EC 1907/2006.
User manual (Predecessor)
Datasheet
Datasheet (Predecessor)
Picture archive

Hill ZPR2620V1 (A) [115/230V-C14] SC
Order code: 2003601
GTIN13: 5060502920591
Size single carton: 516x248x88mm (0.0113 cbm)
Units per master carton: 8
Size master carton: 530x380x510mm (0.1027 cbm)
Note: This product cannot be ordered anymore and is succeeded by below V2 version.

Hill ZPR2620V2 (A) [115/230V-C14] SC
Order code: 2003611
GTIN13: 5060502920607
Size single carton: 535x255x90mm (0.0123 cbm)
Weight single carton: 2.90 kg
Units per master carton: 4
Size master carton: 560x285x390mm (0.063 cbm)
Weight master carton: 12.5 kg

V1: until 02-2017
V2: from 03-2017
